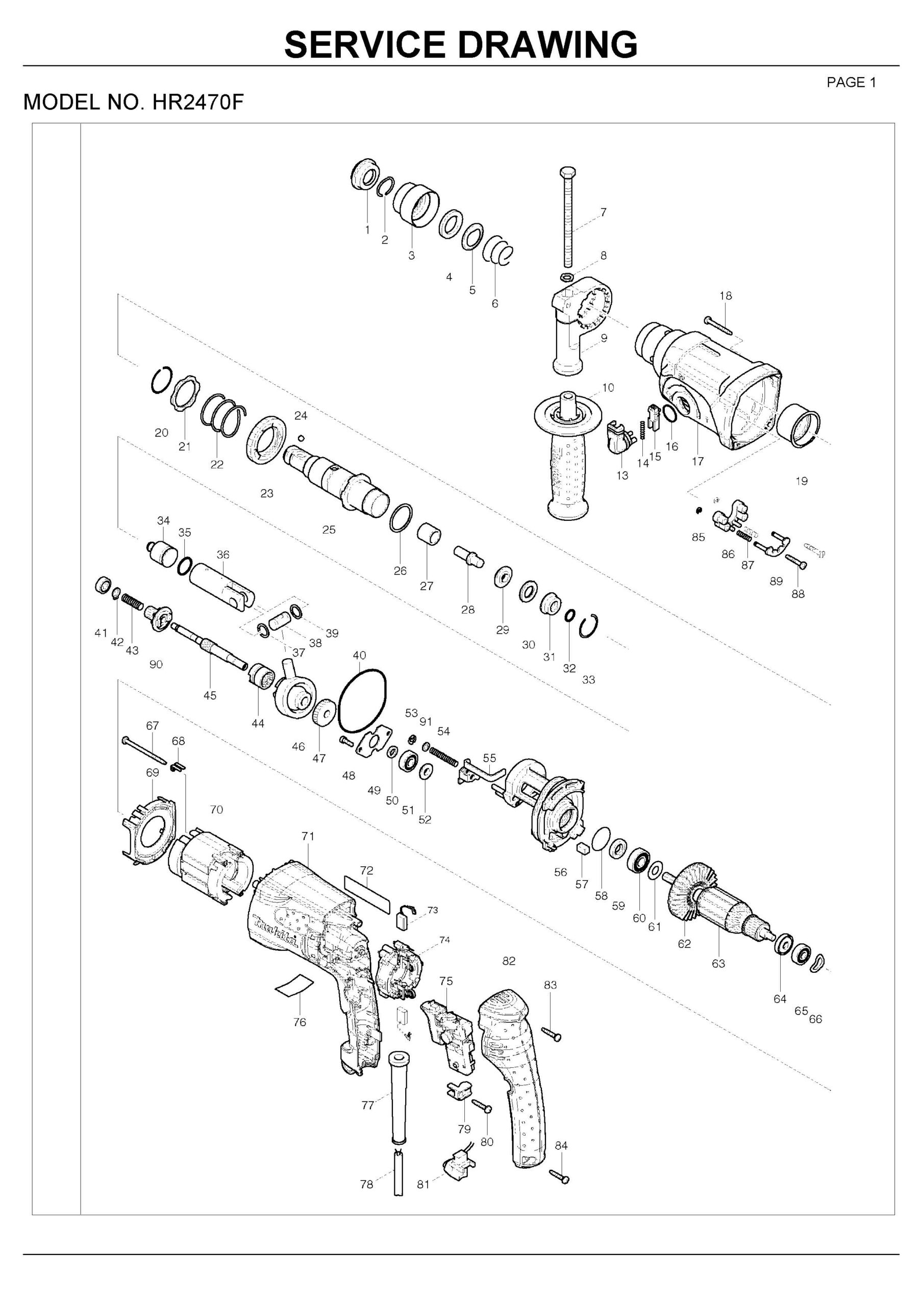

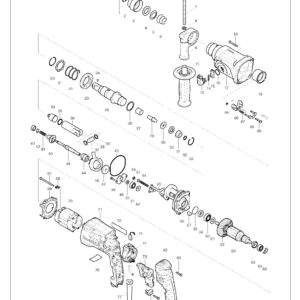

อะไหล่ HR2407F-สว่านโรตารี่-Makita
| หมายเลข | รหัส | รายละเอียด | จำนวน | ราคา |
| 1 | 286263-4 | CAP 35 | 1 | 60 |
| 2 | 233940-9 | RING SPRING 19 | 1 | 33 |
| 3 | 417629-9 | CHUCK COVER | 1 | 60 |
| 4 | 257241-1 | RING 21 | 1 | 71 |
| 5 | 345187-4 | GUIDE WASHER | 1 | 49 |
| 6 | 233916-6 | CONICAL COMP. SPRING | 1 | 30 |
| 7 | 921923-8 | HEX. BOLT M8X120 | 1 | 44 |
| 8 | 345280-4 | HEX. WASHER | 1 | 30 |
| 9 | 417630-4 | GRIP BASE | 1 | 104 |
| 10 | 158057-6 | GRIP 36 COMPLETE | 1 | 56 |
| 13 | 162245-9 | CHANGE LEVER | 1 | 71 |
| 14 | 233459-8 | COMPRESSION SPRING 3 | 1 | 30 |
| 15 | 419192-8 | LOCK BUTTON | 1 | 44 |
| 16 | 213278-8 | O RING 17 | 1 | 313 |
| 17 | 158216-2 | GEAR HOUSING COMPLETE | 1 | 338 |
| 18 | 266351-3 | TAPPING SCREW 4X35 | 4 | 30 |
| 19 | 153290-5 | NEEDLE BEARING COMPLETE | 1 | 136 |
| 20 | 233929-7 | RING SPRING 29 | 1 | 30 |
| 21 | 267791-8 | WASHER 31 | 1 | 44 |
| 22 | 233401-9 | COMPRESSION SPRING 32 | 1 | 55 |
| 23 | 227109-5 | SPUR GEAR 51 | 1 | 400 |
| 24 | 216022-2 | STEEL BALL | 1 | 30 |
| 25 | 158574-6 | TOOL HOLDER COMPLETE | 1 | 600 |
| 26 | 267229-3 | FLAT WASHER 28 | 1 | 39 |
| 27 | 331769-8 | SLEEVE 9 | 1 | 93 |
| 28 | 324669-9 | IMPACT BOLT | 1 | 88 |
| 29 | 324402-9 | RING 10 | 1 | 81 |
| 30 | 421955-0 | CUSHION RING 13 | 1 | 55 |
| 31 | 324216-6 | O RING CASE | 1 | 153 |
| 32 | 213073-6 | O RING 9 | 1 | 60 |
| 33 | 233917-4 | RING SPRING 28 | 1 | 30 |
| 34 | 324733-6 | STRIKER | 1 | 88 |
| 35 | 213227-5 | O RING 16 | 1 | 109 |
| 36 | 318132-2 | PISTON CYLINDER | 1 | 300 |
| 37 | 267104-3 | FLAT WASHER 12 | 1 | 30 |
| 38 | 324215-8 | PISTON JOINT | 1 | 99 |
| 39 | 267104-3 | FLAT WASHER 12 | 1 | 30 |
| 40 | 213727-5 | O-RING 63 | 1 | 109 |
| 41 | 211012-0 | BALL BEARING | 1 | 125 |
| 42 | 961003-8 | RETAINING RING S-7 | 1 | 30 |
| 43 | 233343-7 | COMPRESSION SPRING 7 | 1 | 30 |
| 44 | 331768-0 | CLUTCH CAM | 1 | 155 |
| 45 | 324668-1 | CAM SHAFT | 1 | 388 |
| 46 | 219014-0 | SWASH BEARING 10 | 1 | 750 |
| 47 | 226656-3 | HELICAL GEAR 26 | 1 | 164 |
| 48 | 266273-7 | HEX. SOCKET HEAD BOLT M4X12 | 2 | 109 |
| 49 | 345179-3 | BEARING RETAINER | 1 | 39 |
| 50 | 267234-0 | FLAT WASHER 8 | 1 | 30 |
| 51 | 211032-4 | BALL BEARING | 1 | 0 |
| 52 | 324212-4 | RING 8 | 1 | 99 |
| 53 | 961011-9 | STOP RING E-4 | 1 | 30 |
| 54 | 233342-9 | COMPRESSION SPRING 6 | 1 | 30 |
| 55 | 345363-0 | CHANGE PLATE | 1 | 81 |
| 56 | 158215-4 | INNER HOUSING COMPLETE | 1 | 250 |
| 57 | 443126-9 | FELT | 1 | 30 |
| 58 | 213407-3 | O RING 26 | 1 | 30 |
| 59 | 213077-8 | OIL SEAL 10 | 1 | 49 |
| 60 | 210059-1 | BALL BEARING | 1 | 99 |
| 61 | 267213-8 | FLAT WASHER 10 | 1 | 30 |
| 62 | 240092-9 | FAN 64 | 1 | 113 |
| 63 | 515288-4 | ARMATURE ASS’Y 220V INC. 60-62 64 65 | 1 | 950 |
| 64 | ||||
| 65 | 210023-2 | BALL BEARING | 1 | 136 |
| 66 | 267804-5 | WAVE WASHER 15 | 1 | 30 |
| 67 | 266334-3 | TAPPING SCREW 4X60 | 2 | 30 |
| 68 | 344871-8 | RETAINER | 2 | 44 |
| 69 | 419716-0 | BUFFLE PLATE | 1 | 49 |
| 70 | 626578-1 | FIELD 220V | 1 | 638 |
| 71 | 419718-6 | MOTOR HOUSING | 1 | 275 |
| 72 | 863533-4 | HR2470F NAME PLATE | 1 | |
| 73 | ||||
| 74 | 638500-6 | BRUSH HOLDER UNIT | 1 | 240 |
| 75 | 650589-4 | SWITCH C3VA-2L | 1 | 488 |
| 76 | 814961-6 | HR2470F SERIAL N0.LABEL | 1 | |
| 77 | 682566-8 | CORD GUARD 10 | 1 | 44 |
| 78 | 691015-4 | POWER SUPPLY CORD 0.75-2-2.5 | 1 | 400 |
| 79 | 687261-5 | STRAIN RELIEF | 1 | 39 |
| 80 | 266324-6 | TAPPING SCREW 4X22 | 1 | 30 |
| 81 | 631746-3 | LIGHT CIRCUIT | 1 | 186 |
| 82 | 419717-8 | HANDLE COVER | 1 | 169 |
| 83 | 266324-6 | TAPPING SCREW 4X22 | 1 | 30 |
| 84 | 266324-6 | TAPPING SCREW 4X22 | 2 | 30 |
| 85 | 961017-7 | STOP RING E-3 | 2 | 30 |
| 86 | 417796-0 | GUIDE BASE | 1 | 49 |
| 87 | 233344-5 | COMPRESSION SPRING 4 | 2 | 30 |
| 88 | 266374-1 | TAPPING SCREW 4X25 | 2 | 71 |
| 89 | 163430-7 | LOCK PLATE COMPLETE | 1 | 81 |
| 90 | 227179-4 | SPUR GEAR 10 | 1 | 488 |
| 91 | 941102-2 | FLAT WASHER 5 | 1 | 30 |
| 92 | ||||
| 93 | ||||
| 94 | 122881-3 | TOOL HOLDER ASS’Y INC 20-23 25 27-33 | 1 |
